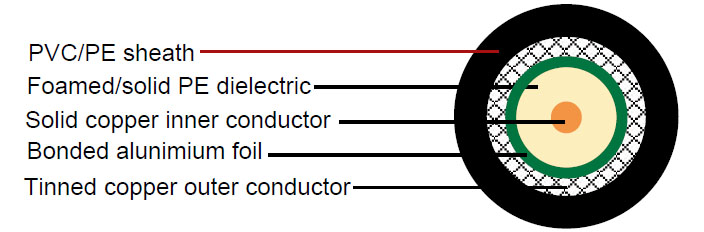

Construction :

• Inner conductor	Bare copper/Copper clad aluminium	Φ3.5 mm
  Dielectric	Foam /Solid PE	Φ10.0±0.02 mm
  Shield	Bonded aluminium foil	Φ10.2 mm
  Outer conductor	Tinned copper braid(24x7x0.15mm)	Φ10.8 mm
  Shield coverage		85%
  Sheath	PVC/PE	Φ13.0 mm

•

Electrical & Mechanical Characteristics :

• Impedance	50±3 Ohm
  Nominal capacitance	84 pF/m
  Velocity of propagation	80%
  Insulation resistance	>5000 Mohm.Km
  Inner conductor resistance	1.8(2.8)) Ohm/Km
  Outer conductor resistance	6.4 Ohm/Km
  Operating temperature range	-40°C - +85 °C
  Min.bending radius	65 mm
  Screening effectiveness	>90 dB
  Return loss	>20 dB

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100 ft)
  100	3.2	1.0
  150	4.1	1.2
  280	5.6	1.7
  350	6.3	1.9
  400	7.0	2.1
  800	10.2	3.1
  900	11.0	3.4
  1200	13.1	4.0
  1500	15.3	4.6
  1800	16.8	5.1
  1900	17.4	5.3
  2000	18.0	5.5
  2200	18.8	5.7
  2500	22.5	6.3
